Advantages:

Increase profits
Improve efficiency
Eliminate separators
Improve power factor
Save up to 20% copper
Labor savings up to 50%
Wind motors in half the time
Save up to 33% phase insulation
Improve service with quicker turn-around time



















  No phone orders. P.O by fax or E-mail only.
A 4% Credit Card processing fee will be added to applicable orders.

Model #	Description	Price- US. Dollars	Packing & Handling		Weight
			Domestic	Export

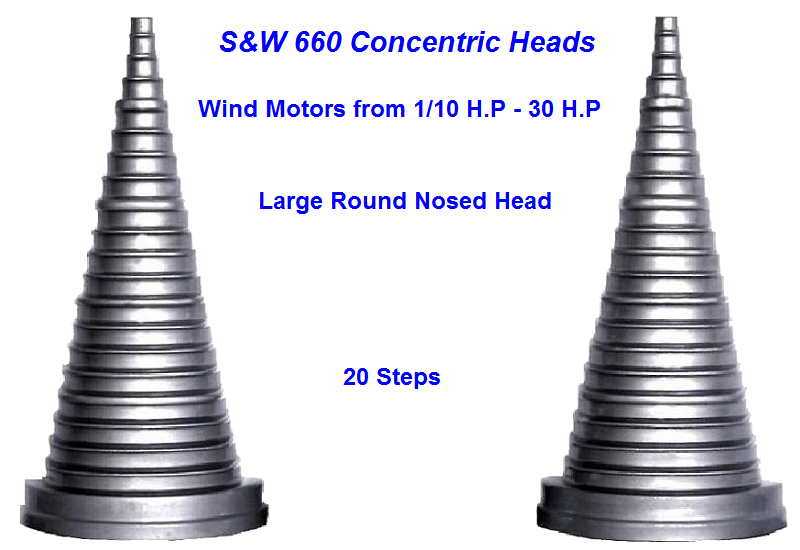

SW660	20, Step width 3/4"(19.05mm)- 6 1/4"(158.75mm), Slot width 5/8"(15.875mm)wide, Rib height 3/8"(9.525mm) - 3/4"(19.05mm)	$1,475.00	$83.00	$133.00	35 Lbs

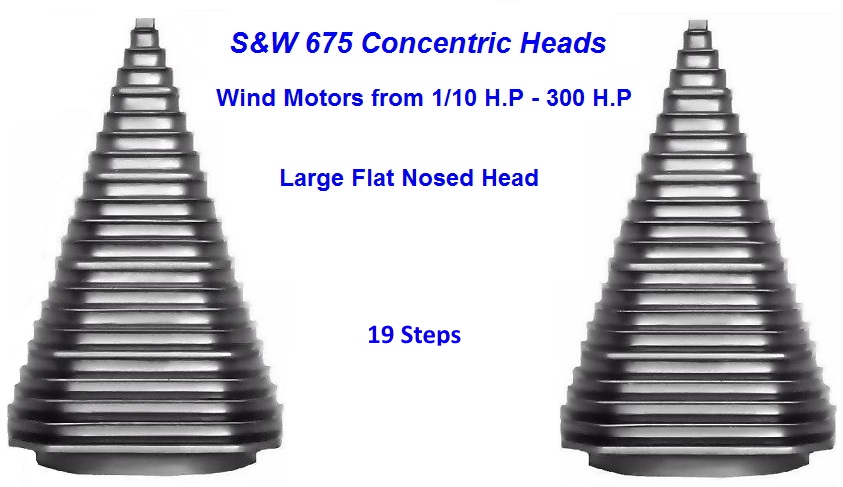

SW675	19 Steps width 3/4"(19.05mm) - 10"(254mm), Slot width 3/4"(19.05mm) - 1 1/4"(31.75mm), Rib height 3/4"(19.05mm)	$2,146.00	$83.00	$133.00	52 Lbs

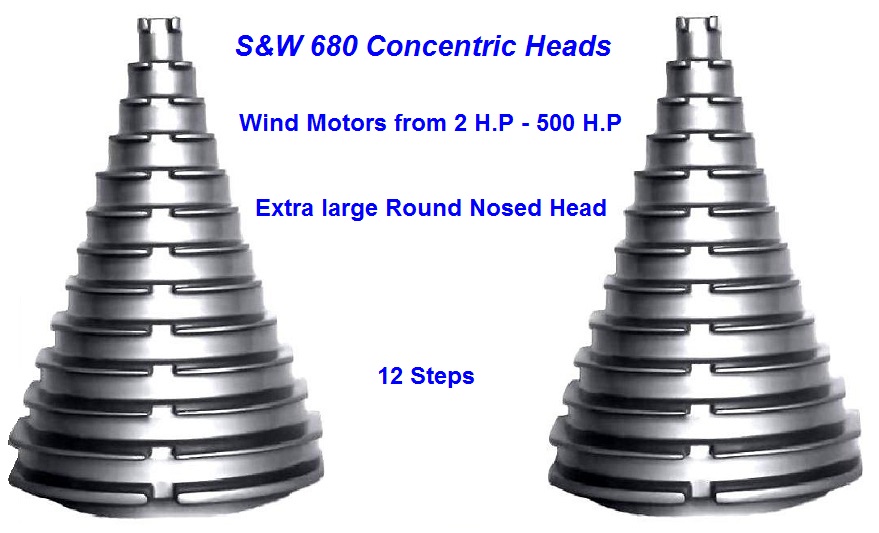

SW680	Concentric Head for 3C's and 4C's Method (2.75" - 6.125" Step Width)12 Step width 2"(50.8mm) - 14"(355.6mm), Slot width 1 1/8"(28.575mm), Rib height 1 1/8"(28.575mm)	$2,448.00	$83.00	$133.00	80 Lbs



 Note: * Spreader bar (LA-HDSB) may be required if Tension Device is used.
